GK-BA Automatic Folder Gluer

GK-BA Automatic Folder Gluer

GK-650BA/GK-780BA,Way of folding:Fold 1 and fold 3 are 180°,fold 2 and fold 4 are 90°and 180°.Over dimension: 7.5x1.3x1.45m/7.5x1.45x1.45m
GK-BA Automatic Folder Gluer
GK-BA Automatic Folder Gluer
GK-BA Automatic Folder Gluer
GK-BA Automatic Folder Gluer
GK-BA Automatic Folder Gluer
Name GK-BA Automatic High-Speed Pre-Fold Gluer Folder
model GK-650BA GK-780BA
Paper Material Cardboard 210-800g
Max. Liner speed Max. 220 meter/minute
Feeding way Automatically and continuously feeding
Way of folding Fold 1 and fold 3 are 180°,
fold 2 and fold 4 are 90°and 180°
Glue Material Water-base cold glue
Electric power 6.0kw   380v 6.0kw  380v
Weight 2.0T 2.5T
Over dimension 7.5x1.3x1.45m 7.5x1.45x1.45m

 QUOTATION

Product introduction:

Series BA Two folds folding gluing machine is Pre-fold machine, adopt synchronous belt transmission and electronic continuously variable speeder ,domestic standard electronic components,feeding section adopt mechanic continuously variable, stable and easy to control and operate. It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons, process and perfectly combing the requirements of auto packaging together.

Feature introduction

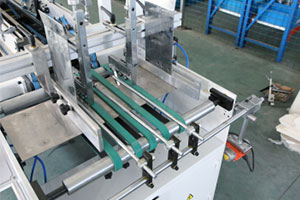

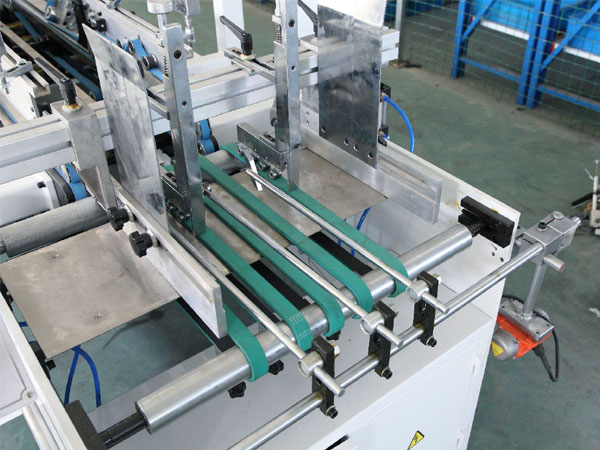

Feeding

Feeding

5pcs Adjustable feeding belts to ensure easy adjustment,
stable and smoothly feeding.

Continuously Variable Speeder to ensure feeding internal and stable transmission.

One-touch Pneumatic knife, easy for the adjustment of feeding belts.

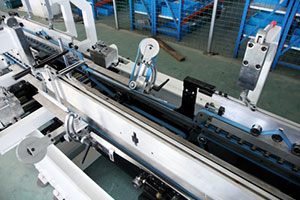

Pre-fold

Double-board structure with a set of pre-folding knife.
Pre-fold angle is 180°and 90°, especially suitable for
small but high cartons, more satisfactory while rapid prototyping.

Pre-fold

Folding

Folding

Lengthened folding to avoid the unevenness while the rapid
forming of cartons and make it come to perfection.

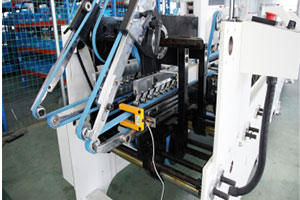

Full pressing

2-board structure

Two modes for pressing belt speeding:

Auto: set distance between boxes, pressing belt speed is the same as the machine,
belt removes while sensor detect it.

Manual: pressing belt conveys in a fixed speed and machine speed will not put any effect on it.

With counting device to count the finished boxes to match with boxes regulating,
easy to count and pack.

Full pressing

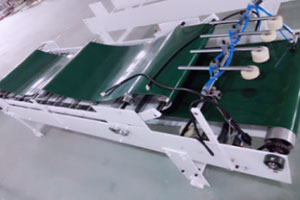

Transmission

Transmission

Equipped with feeding paper inspection device.

Equipped with impacting device to press the paper
after accounting and make it easy to pack paper.

Samples

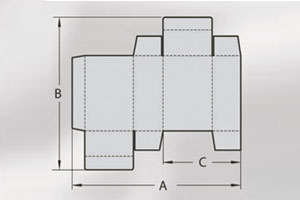

GK- BA Equipment (Applicable for cardboard)

Common type and size plane figure
Model 650Type 780Type
A 75-650 75-780
B 60-650 60-780
C(Min) 35 35
