PC Parameters
| Name | GK-PC Automatic High-Speed Bottom Lock Folder Gluer | |||
| model | GK-1200PC | GK-1450PC | GK-1600PC | GK-1800PC |
| Paper Material | Cardboaed210-800g A/B/E Corrugated | |||
| Max. Liner speed | Max. 260 meter/minute | |||
| Feeding way | Automatically and continuously feeding | |||
| Way of folding | Fold 2 and fold 4 are 180° | |||
| Glue Material | Water-base cold glue | |||
| Power Supply | 3P380V50HZ | |||
| Total power | 21kw | 22.4kw | 24kw | 24kw |
| Weight | 8T | 9T | 10T | 12T |
| Over dimension | 16x1.85x1.6m | 16x2.1x1.6m | 16x2.3x1.6m | 16x2.5x1.6m |
PC Features introduction
|
|

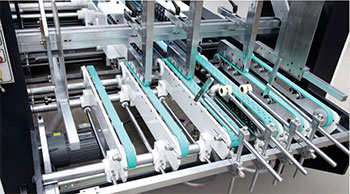

Paper Feeding Section Equipped with air suction function, Multi-stage rail to ensure the verticality of pressing board. To ensure that the paper feeding is not skewed, the unique structure keeps more simple and Vibration device coordinate with motor which helps machine consecutive and automatic feeding quickly and simply |
|
|

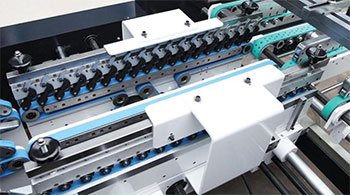

Aligner section The paper board sent from feeder section will be corrected by aligner section to ensure transmission accurately. Pressing drive pressure can be adjusted up and down to accommodate different paper board thickness. |
|
|

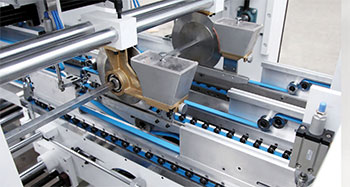

Lock bottom Section Independent motor drive, equipped with upper gluing tank. |
|

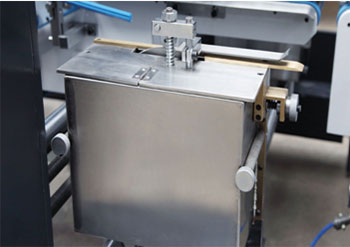

Lower gluing tank lower gluing tank is large volume. Easy to remove and clean |
|
|

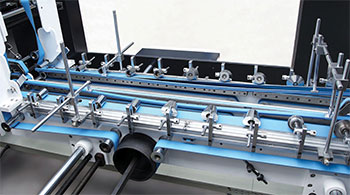

Folding and closing Equipped with 3 plate type rail device. The upper pressure belt adopts the |
|
|

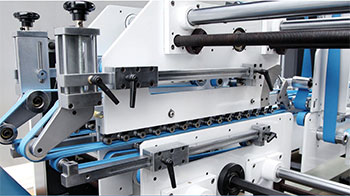

Trombone section Independent motor drive can be used to control the adjustable size of the belt. Paper collection adopts cylinder pressure system, easier to adjust pressure, make |
|
|

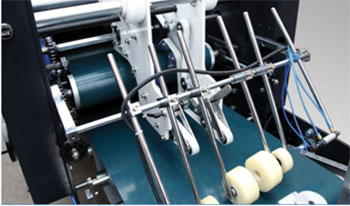

Transmission Up and down belt can be adjusted separately. Equipped with photo electronic counting device and kicking paper device, which can |
|
| Straight-line box |  |
||||
| Model | 1200PC | 1450PC | 1600PC | 1800PC | |
| A | 250-1200 | 300-1450 | 300-1600 | 300-1800 | |
| B | 80-700 | 80-1000 | 80-1000 | 80-1000 | |
| C(Min) | 120 | 120 | 120 | 120 | |
| Crash lock bottom box |  |
||||
| Model | 1200PC | 1450PC | 1600PC | 1800PC | |
| A | 280-1200 | 300-14500 | 300-1500 | 300-1800 | |
| B | 80-700 | 100-700 | 100-700 | 100-700 | |
| C(Min) | 25 | 25 | 25 | 25 | |
| D(Min) | 35 | 35 | 35 | 35 | |
| E(Min) | 110 | 110 | 110 | 110 | |
