Introduction
PCS Automatic high speed 4 and 6 corners folding gluing machine, Perfect solution to work in the heavy packaging industry.
Able to produce complex carton structures, straight line, lock bottom, 4 & 6 corners cartons and more.
PCS TECHNICAL PARAMETERS
|
PCS TECHNICAL PARAMETERS |
||||
|
MODEL |
1200 |
1450 |
1650 |
1800 |
|
Paper material |
Cardboard 210-800gsm, A/B/E Flute |
|||
|
Max.speed |
260m/min |
|||
|
Max.thickness of folded box |
12mm |
12mm |
12mm |
12mm |
|
Way of folding |
Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180° |
|||
|
Power supply |
3P 380V 50HZ |
|||
|
Blank width |
1200mm |
1450mm |
16550mm |
1800mm |
|
Length x Width x Height |
16.5x1.84x1.7m |
16.5x2.14x1.7m |
16.5x2.24x1.7m |
16.5x2.49x1.7m |
|
Net Weight |
9.5T |
11T |
13T |
14.5T |
|
Total power |
31.28kw |
34.28kw |
34.28kw |
34.28kw |
|

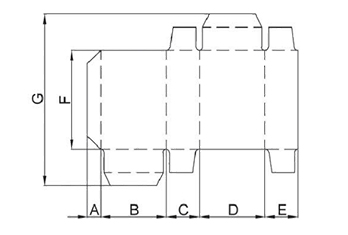

Straight Line Box Way of folding : Three carriers Carton type and size: |
|
||||
|
Model |
1200Type |
1450Type |
1650Type |
1800Type |
|
|
B+C+D+E |
280-1200 |
280-1450 |
350-1650 |
350-1800 |
|
|
C+D |
140 |
140 |
175 |
175 |
|
|
C+D+E |
70 |
70 |
70 |
70 |
|
|
F |
70-900 |
70-900 |
70-900 |
70-900 |
|
|
G(Max) |
900 |
900 |
900 |
900 |
|
|
Prefolding |
|||||
|
D+E(Max) |
300 |
300 |
300 |
300 |
|
|
G（Max） |
400 |
400 |
400 |
400 |
|
|

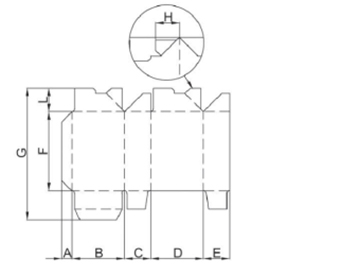

Crash Lock Bottom BoxWay of folding: Three carriers Carton type and size: |
|
||||
|
Model |
1200Type |
1450Type |
1650Type |
1800Type |
|
|
B+C+D+E |
280-1200 |
280-1450 |
350-1650 |
350-1800 |
|
|
C+D |
140 |
140 |
175 |
175 |
|
|
F |
70-900 |
70-900 |
70-900 |
70-900 |
|
|
G(Max) |
900 |
900 |
900 |
900 |
|
|
H(Min) |
25 |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
30-100 |
|
|

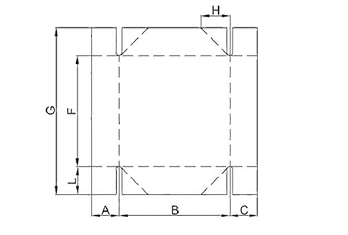

4 Corners Box Way of folding: Three carriers Carton type and size: |
|
||||
|
Model |
1200Type |
1450Type |
1650Type |
1800Type |
|
|
A+B+C |
160-1200 |
160-1450 |
160-1650 |
160-1800 |
|
|
B(min) |
90 |
90 |
90 |
90 |
|
|
F |
70-900 |
70-900 |
70-900 |
70-900 |
|
|
G(max) |
900 |
900 |
900 |
900 |
|
|
H(min) |
25 |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
30-100 |
|
|

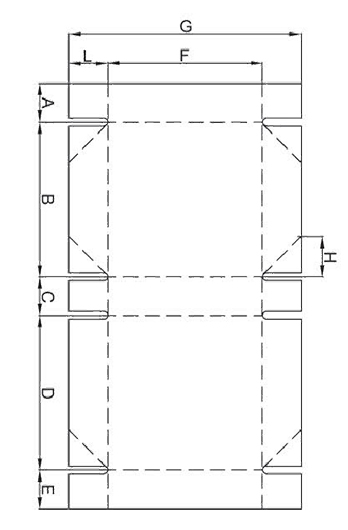

6 Corners BoxWay of folding: Three carriers |
|
||||
|
Model |
1200Type |
1450Type |
1600Type |
1800Type |
|
|
A+B+C+D+E |
260-1200 |
260-1450 |
350-1650 |
350-1800 |
|
|
B+C(min ) |
90 |
90 |
175 |
175 |
|
|
B(min) |
90 |
90 |
90 |
90 |
|
|
C(min) |
30 |
30 |
30 |
30 |
|
|
D(min) |
70 |
70 |
70 |
70 |
|
|
F |
70-900 |
70-900 |
70-900 |
70-900 |
|
|
G(max) |
900 |
900 |
900 |
900 |
|
|
H(min) |
25 |
25 |
25 |
25 |
|
|
L |
30-100 |
30-100 |
30-100 |
30-100 |
|
