Folding Carton Solutions

AS-A Automatic Folder Gluer

AS-A Automatic Folder Gluer

AS series box fdding gluing machine machine is an air-moving pressure bed device for edge-straightening hook, adopt synchronous belt transmission and electronic continuously variable speeder, domestic standard electronic components, feeding section adopt independent motor control, stable and easy to control and operate.
AS-A Automatic Folder Gluer
AS-A Automatic Folder Gluer
AS-A Automatic Folder Gluer
AS-A Automatic Folder Gluer
AS-A Automatic Folder Gluer

Introduction

It is widely used in food, medicine, cosmetics, stationery and other ordinary cartons. (We can customize of other size).

AS-A TECHNICAL

AS-A TECHNICAL PARAMETERS

MODEL

650

800

1100

Paper material

Cardboard 210-800gsm, E/N/F Flute

Max. speed

260m/min

Max .thickness of folded box

12mm

12mm

12mm

Way of folding

Fold 1 and fold 3 are 180°and 180°,fold 2 and fold 4 are 180°

Power supply

3P 380V 50HZ

Blank width

650mm

800mm

1100mm

Length x Width x Height

10x1.08x1.4m

10x1.23x1.4m

10x1.58x1.4m

Net Weight

2.5T

3T

3.5T

Total power

9.2kw

9.2kw

9.2kw

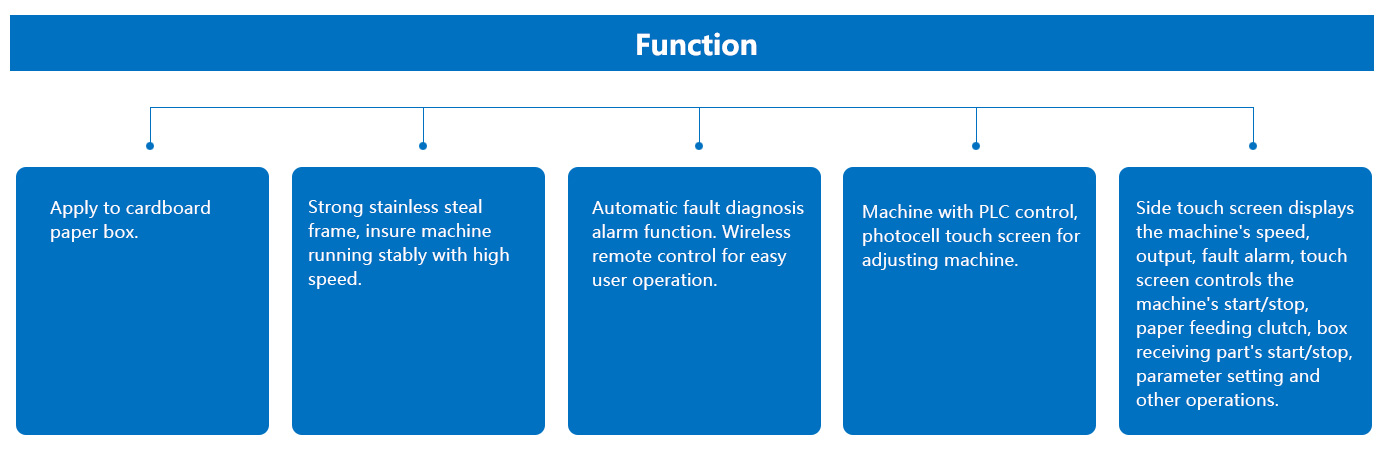

Function

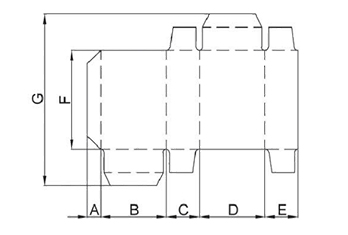

Straight Line Box Carton type and size:

 plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

B+C+D+E

130-650

130-800

130/280-1100

C+D(Min)

65

65

65/140

F

70-700

70-700

70-700

G(Max)

700

700

700

Pre-folding

D+E(Max)

300

300

300

G(Max)

400

400

400
