XL SERIES Automatic Intelligent Climbing Folder Gluer

XL SERIES Automatic Intelligent Climbing Folder Gluer

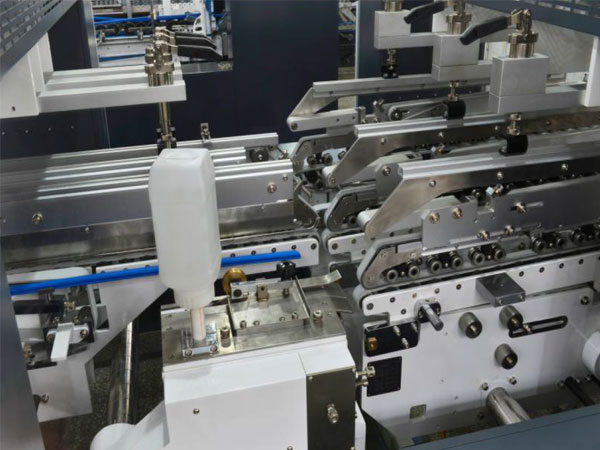

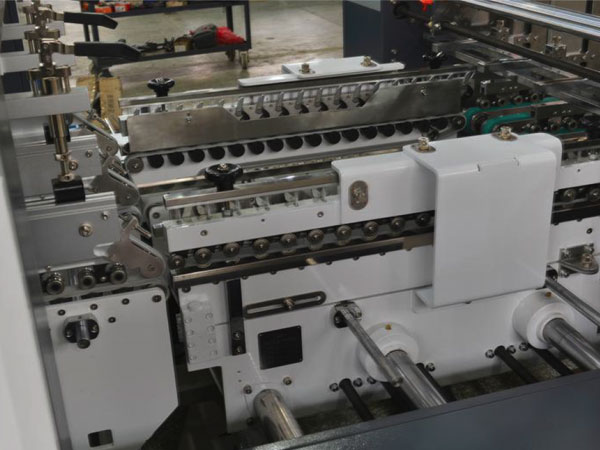

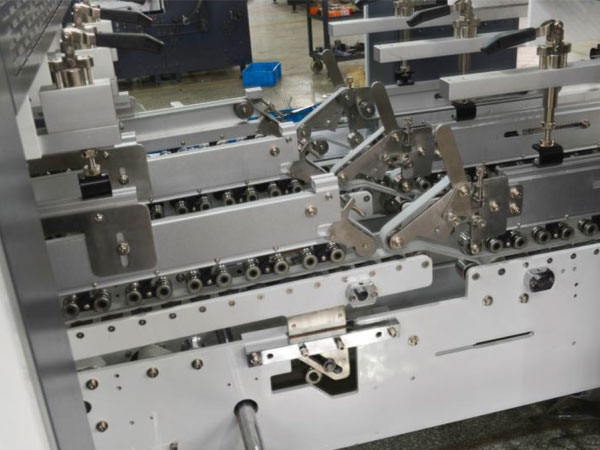

XL series Automatic high speed intelligent folding gluing machine combined with new advanced technology, controlled by memory system, it is another masterwork of Zhejiang New Luolan Machinery. It can store memories of different data of different shapes of boxes, which realizes automatic memory control rocking plate position and increases efficiency and accuracy.
XL SERIES Automatic Intelligent Climbing Folder Gluer
XL SERIES Automatic Intelligent Climbing Folder Gluer
XL SERIES Automatic Intelligent Climbing Folder Gluer
XL SERIES Automatic Intelligent Climbing Folder Gluer
XL SERIES Automatic Intelligent Climbing Folder Gluer

Introduction

The whole machine adopts servo motor controllers, hook-less structure for the crash lock bottom instead of traditional folder gluer. XL series Automatic high speed intelligent folding gluing machine is your best option for packaging.

TECHNICAL PARAMETERS

TECHNICAL PARAMETERS

MODEL

650

800

1100

Paper material

Cardboard 210-800gsm, A/B/E Flute

Max.Speed

400m/min

Max.thickness of folded box

12mm

12mm

12mm

Way of folding

Fold 1 and fold 3 are 180°and 135°,fold 2 and fold 4 are 180°

Power supply

3P 380V 50HZ

Blank width

650mm

800mm

1100mm

Length x Width x Height

16x1.65x1.6m

16x1.8x1.6m

16x2.1x1.6m

Net Weight

8T

9T

11T

Total power

36.4kw

38kw

38.4kw

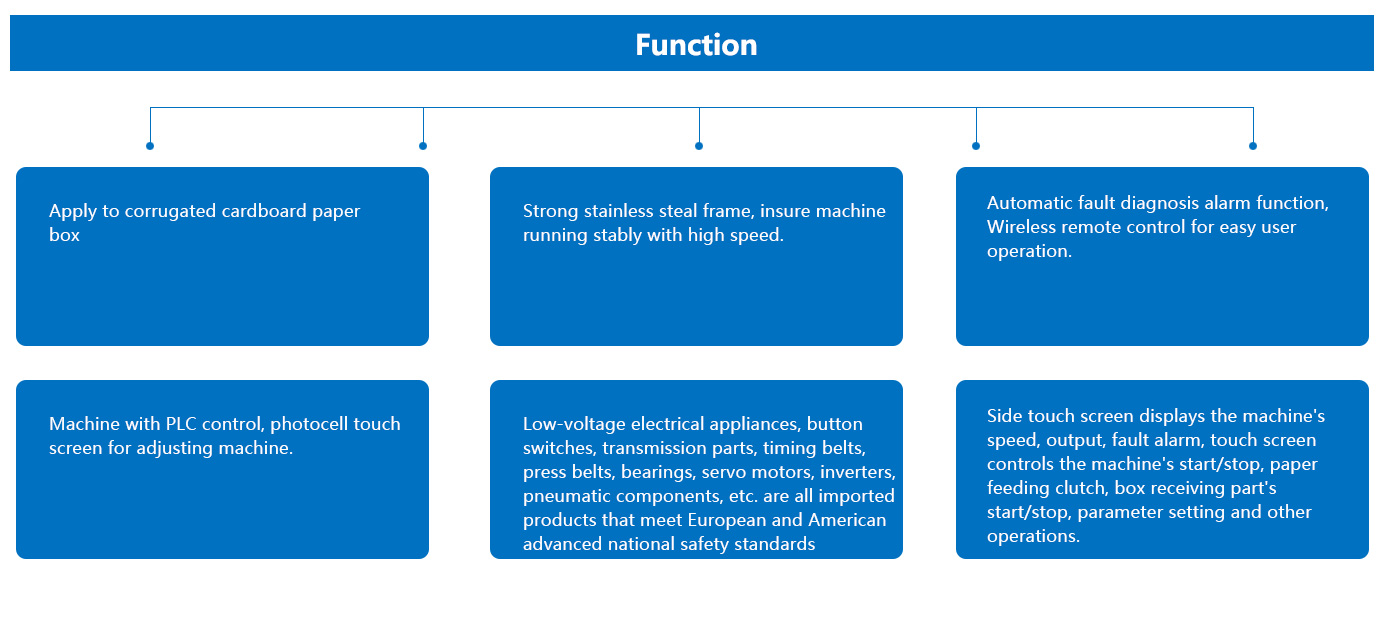

Function

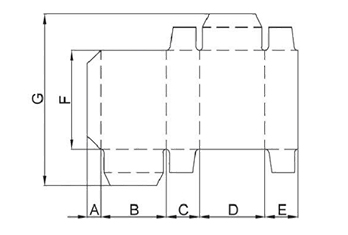

Straight Line Box Carton type and size:

 plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

B+C+D+E

130-650

130-800

130/280-1100

C+D

65

65

65/140

C+D+E

70

70

70

F

70-800

70-800

70-800

G(Max)

800

800

800

D+E(Max)

300

300

300

G(Max)

500

500

500

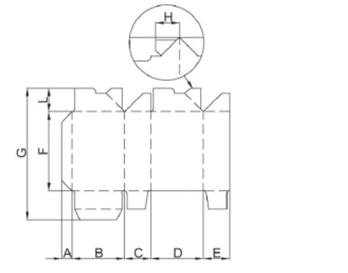

Crash Lock Bottom Box Carton type and size:

 plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

B+C+D+E

130-650

130-800

130/280-1100

C+D

65

65

65/140

F

70-800

70-800

70-800

G(Max)

800

800

800

H(Min)

25

25

25

L

30-100

30-100

30-100

Lock Bottom in Climbing Way Carton type and size:

 plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

B+C+D+E

160-650

160-800

160/280-1100

C+D

65

65

65/140

F

100-800

100-800

100-800

G(Max)

800

800

800

H(Min)

25

25

25

L

30-100

30-100

30-100

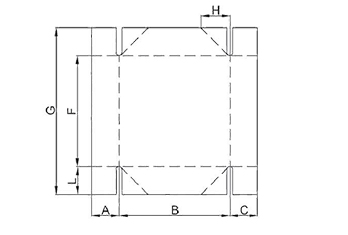

4 Corners Box

plane figure

Model

650Type

800Type

1100Type

Way of folding

Two carriers

Two carriers

Two /three carriers

A+B+C

160-650

160-800

160-1100

B(min)

90

90

90

F

70-800

70-800

70-800

G(max)

800

800

800

H(min)

25

25

25

L

30-100

30-100

30-100

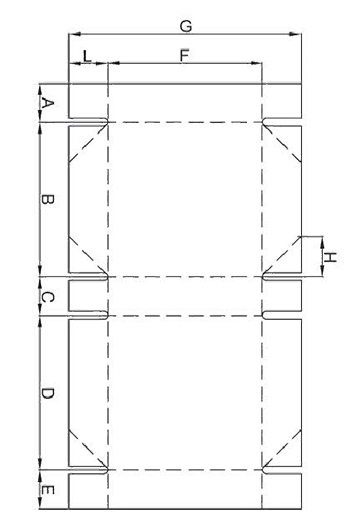

Corners /6 Corners in Climbing Way

plane figure

Model

650Type

800 Type

1100 Type

Way of folding

Two carriers

Two carriers

Two/three carriers

A+B+C+D+E

280-650

280-800

280/310-1100

B+C(min )

90

90

90/140

B(min)

90

90

90

C(min)

30

30

30

D(min)

70

70

70

F

70-800

70-800

70-800

G(max)

800

800

800

H(min)

25

25

25

L

30-100

30-100

30-100
